StrumFix Plus DUO

$35.00

Dual independent strummers, for more realistic action especially for bass players. Jumpers on the circuit board can be used to select how the strummers behave (up/down/split).

Uses the same switches and has the same travel as the StrumFix Plus 2.

Dual independent strummers, for more realistic action especially for bass players. Jumpers on the circuit board can be used to select how the strummers behave (up/down/split).

Uses the same switches and has the same travel as the StrumFix Plus 2.

Strum Fix Adapter for Jaguar guitar
Strum Fix Adapter for Jaguar guitar
$3.00
Strum Fix Adapter for Riffmaster guitar
Strum Fix Adapter for Riffmaster guitar
$5.00
StrumFix Adapter for Precision Bass
StrumFix Adapter for Precision Bass
$5.00

More Info:

Guitar Compatibility - check if your guitar will work with a StrumFix.

Installation Instructions - with links to videos.

StrumFix 3D models - for printing replacement parts.


DUO Jumper Settings

The DUO has “jumper blocks” on the circuit board that are used to configure the behavior of the strummer. There are basically two options:

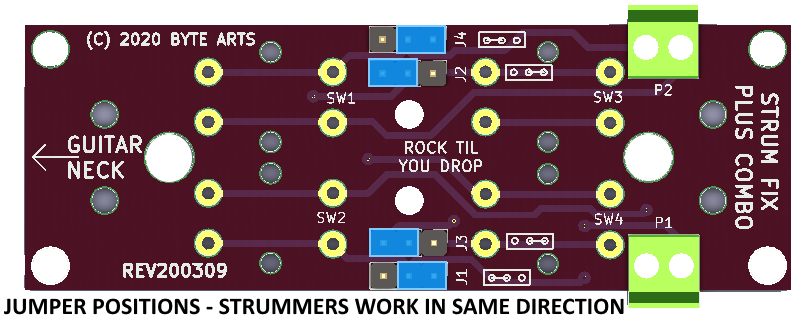

  • Configure the DUO so each of the 2 strum bars activate the up or down switches in the same direction. This means when you strum down on either strum bar it will activate the “down” strum.

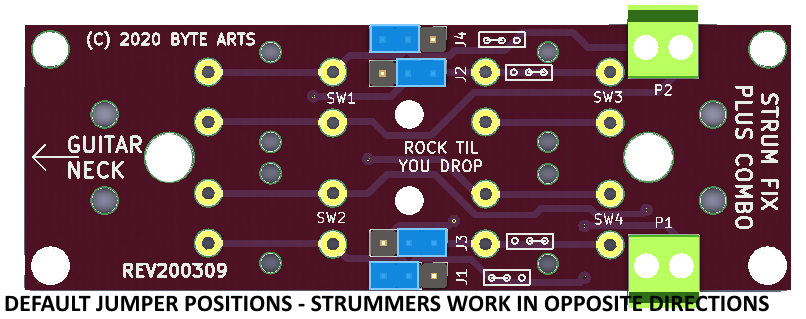

  • Configure the DUO so the strum bars activate the switches in opposite directions. This means that if you strum down on both strum bars at the same time, one will activate the “down” strum, the other will activate the “up” strum.

Jumper Diagrams
